Overview

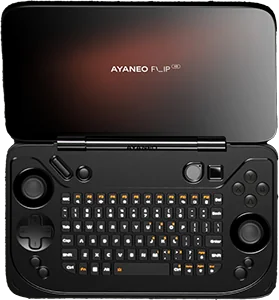

The AYANEO Flip KB is a high-end clamshell retro handheld from AYANEO with a 7.0-inch 1920×1080 IPS screen, WiFi and Bluetooth, and runs Windows 11. It is best suited for Switch, PS3, Wii U, PS2, with support listed up to Switch. It typically sells for around $1,069.
- Screen
- 7.0 inch IPS
- Chipset
- AMD Ryzen 7 7840U, AMD Ryzen 7 8840U
- RAM
- 16 GB / 32 GB / 64 GB
- Battery
- 45 Wh
- Weight
- 650 grams
- OS
- Windows 11
Emulation
- Classicexcellent
- NESExcellent
- Game BoyExcellent
- SNESExcellent
- GBAExcellent
- GenesisExcellent
- PS1Excellent
- Mid-genexcellent
- N64Excellent
- DSExcellent
- PSPExcellent
- DreamcastExcellent
- SaturnExcellent
- 6th genexcellent
- GameCubeExcellent
- WiiExcellent
- PS2Excellent
- Modernexcellent
- 3DSExcellent
- Wii UExcellent
- PS3Excellent
- SwitchExcellent
Notes on 18 systems
- DS: Nintendo DS: Almost all games playable at full speed without frameskip
- 3DS: Nintendo 3DS: Almost all games playable at full speed without frameskip
- GBA: Nintendo Game Boy Advance: Almost all games playable at full speed without frameskip
- N64: Nintendo 64: Almost all games playable at full speed without frameskip
- NES: Nintendo Entertainment System: Almost all games playable at full speed without frameskip
- PS1: Sony Playstation: Almost all games playable at full speed without frameskip
- PS2: Sony Playstation 2: Almost all games playable at full speed without frameskip
- PS3: Sony Playstation 3: Almost all games playable at full speed without frameskip
- PSP: Sony Playstation Portable: Almost all games playable at full speed without frameskip
- Wii: Nintendo Wii: Almost all games playable at full speed without frameskip
- SNES: Super Nintendo Entertainment System: Almost all games playable at full speed without frameskip
- Wii U: Nintendo Wii U: Almost all games playable at full speed without frameskip
- Saturn: Sega Saturn: Almost all games playable at full speed without frameskip
- Switch: Nintendo Switch: Almost all games playable at full speed without frameskip
- Genesis: Sega Genesis / Mega Drive: Almost all games playable at full speed without frameskip
- Game Boy: Game Boy / Game Boy Color: Almost all games playable at full speed without frameskip
- GameCube: Nintendo GameCube: Almost all games playable at full speed without frameskip
- Dreamcast: Sega Dreamcast: Almost all games playable at full speed without frameskip
Played on the AYANEO Flip KB
Nobody's tracked play on the AYANEO Flip KB yet.
Yours could be the first. Track yours
Track your play on the AYANEO Flip KB
Install the plugin for SteamOS and every session syncs to retroshelf on its own: what you played, and for how long.
Setup guides
Specifications
General
- Released
- April 2024
- Type
- Handheld, Clamshell
- Operating system
- Windows 11
- Custom firmware
- Bazzite
- Price range
- High-End
Display
- Screen
- 7.0 inch IPS
- Resolution
- 1920 x 1080 (16:9)
- Pixel density
- 319.26 PPI
- Refresh rate
- 120 Hz
Performance
- Chipset
- AMD Ryzen 7 7840U, AMD Ryzen 7 8840U
- CPU
- AMD Zen 4, 8 cores, 3.3 GHz - 5.1 GHz
- GPU
- AMD Radeon 780M, 2.7 GHz
- RAM
- 16 GB / 32 GB / 64 GB LPDDR5X
- Storage
- Internal 512 GB / 2 TB M.2 2230 SSD, External MicroSD
- Architecture
- x86-64
Battery and build
- Battery
- 45 Wh
- Weight
- 650 grams
- Dimensions
- 180 mm x 102 mm x 29.8 - 37.5 mm
- Material
- Plastic
- Cooling
- Active (fan)
- Rumble
- Yes
Controls
- D-pad
- Left
- Sticks
- Asymmetric
- Shoulders
- Stacked
- Inputs
- Hall effect sticks, L3/R3, Analog L2/R2, Touch screen, Gyroscope
- Extra buttons
- Full QWERTY keyboard, Optical finger mouse, LC/RC shoulder buttons, Power/Fingerprint, Volume +-
Connectivity
- Wi-Fi
- WiFi 6E
- Bluetooth
- 5.2
- Ports
- USB-C, 3.5mm jack
- Storage slot
- microSD
- Speakers
- Stereo
FAQ
What systems can the AYANEO Flip KB emulate?
The AYANEO Flip KB plays systems up to Switch at excellent quality. It is at its best with Switch, PS3, Wii U, PS2.
Can the AYANEO Flip KB play Switch games?
Yes. Switch performance on the AYANEO Flip KB is rated excellent in our catalog. Nintendo Switch: Almost all games playable at full speed without frameskip
How much does the AYANEO Flip KB cost?
The AYANEO Flip KB typically sells for around $1,069, which puts it in the high-end tier of retro handhelds.
What operating system does the AYANEO Flip KB run?
The AYANEO Flip KB ships with Windows 11 and also supports Bazzite.
Can I track my play time on the AYANEO Flip KB?
Yes. Install the retroshelf plugin for SteamOS and every session syncs to retroshelf on its own, with the game and how long you played.
What screen does the AYANEO Flip KB have?
It has a 7.0 inch IPS display with a 16:9 aspect ratio, running at 1920 x 1080 at 319.26 PPI.
